Waterjet Mixing Tube
KAD manufactures cutting head components and mixing tubes for water jet systems using abrasive water jet cutting. We sell focusing tubes as well as nozzle clamps and parts to protect during maintenance and replacement. Buyers can give a tube internal diameter, external diameter, tube length, machine type or reference part number to verify the product parameters. We provide help with identifying replacement parts, reviewing specification, and providing replacement part or bulk quotations direct from the factory to industrial maintenance teams, distributors and owners of equipment.
-
Wear-Resistant Mixing Tubes
-
Precision Bore Dimensions
-
Mixing Tube Inspection & Compatibility
Waterjet Mixing Tubes & Nozzle Accessories
Explore KAD's range of waterjet mixing tubes and related nozzle accessories for abrasive cutting systems. Our products include replacement focusing tubes, nozzle clamps, and protective components used in cutting head assemblies. Each component serves a different function, from directing the abrasive waterjet stream to securing or protecting the tube during operation. Part selection depends on the cutting head configuration, dimensions, and equipment specifications.

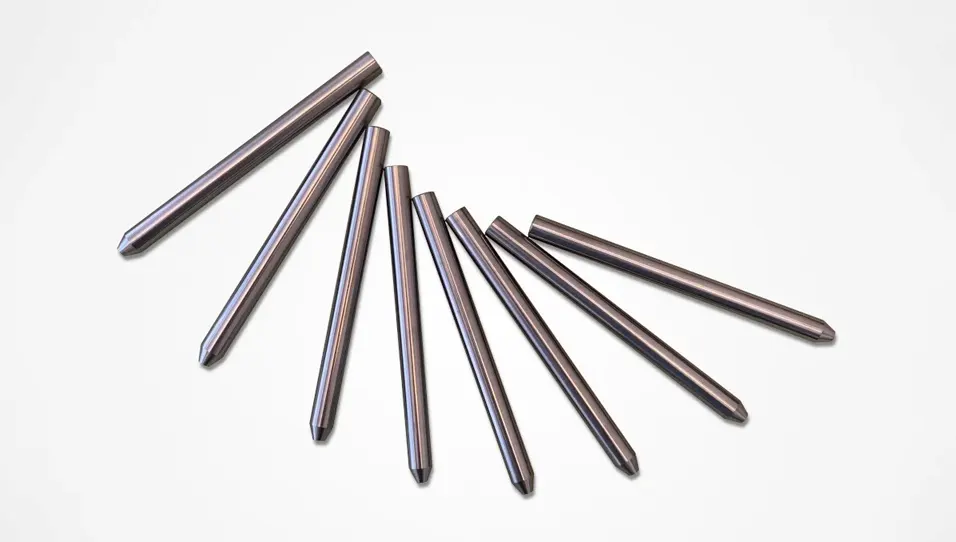

Waterjet Mixing Tube
Waterjet mixing tubes, also known as focusing tubes or abrasive nozzles, guide the water-abrasive mixture after it leaves the mixing chamber. Bore size, tube length, wear resistance, and alignment are important factors affecting cutting stream consistency. Replacement tubes should be selected according to the cutting head design and required dimensions.
Waterjet Nozzle Clamp
Waterjet nozzle clamps help secure and position the mixing tube within compatible cutting head assemblies. Correct clamping dimensions and installation fit are important for maintaining stable tube positioning. Buyers should confirm the clamp type, reference part number, and cutting head model before ordering.
Waterjet Mixing Tube Protector
Mixing tube protectors are used in selected waterjet cutting head configurations to provide external protection around the nozzle assembly. Their dimensions and installation design must correspond to the intended equipment. KAD can review replacement requirements using reference parts, dimensions, or technical drawings.
Why Choose KAD for Waterjet Mixing Tubes?
Wear-Resistant Tube Materials
KAD selects suitable wear-resistant materials to improve service life under continuous abrasive impact.
Precision Bore Dimensions
Precise internal geometry ensures consistent abrasive flow and cutting quality.
Replacement Part Compatibility
Strict machining and inspection processes maintain dimensional accuracy.
Factory-Direct Supply
KAD supports different sizes, materials, and specifications according to customer requirements.
Waterjet Mixing Tube Precision & Quality Inspection
| Component / Inspection Item | Inspection Method | Typical Tolerance / Accuracy | Purpose |
| Mixing Tube Position | Dimensional measurement | ±0.01mm ~ ±0.02mm | Ensures correct jet alignment |
| Clamp Inner Diameter | Precision measurement | ±0.01mm | Maintains stable tube positioning |
| Nozzle Clamp Outer Dimension | CNC inspection | ±0.02mm | Ensures compatibility with cutting head |
| Mounting Thread Accuracy | Thread gauge inspection | ±0.01mm | Guarantees secure installation |
| Assembly Alignment | Assembly verification | Controlled according to system requirements | Prevents jet deviation |
| Protector Dimension | Dimensional inspection | ±0.02mm | Ensures proper protection fit |
| Surface Finish | Roughness testing | Ra 0.4–0.8μm | Improves component contact quality |
The above tolerance values represent typical manufacturing capability under controlled production conditions. Actual tolerance requirements may vary depending on component design, material characteristics, structural complexity, and customer specifications. contact us
Materials for Waterjet Mixing Tubes & Accessories
Material selection varies between abrasive-contact mixing tubes and their supporting components. Mixing tubes require suitable wear resistance and dimensional stability, while nozzle clamps and protectors have different mechanical and installation requirements. KAD reviews materials based on component specifications, application conditions, and customer requirements. Contact our team to confirm available material options for each product.
- POM
- PA
- PEEK
- PTFE
- PVC
- Aluminum 6061
- Aluminum A5052
- A1100
- Aluminum Alloy 2A12
- Brass
- Copper(CU)
- Magnesium Alloy
- Aluminum 3003
- Aluminum A5056
- Copper Alloy C3604
- Aluminum Alloy 5000
- AL1060
- C2801P-1/2H
- C1020P
- A2014
- Aluminum Alloy 7000
- Titanium Alloy
- 7075
- A2011
- A2024
- A7050
- POM

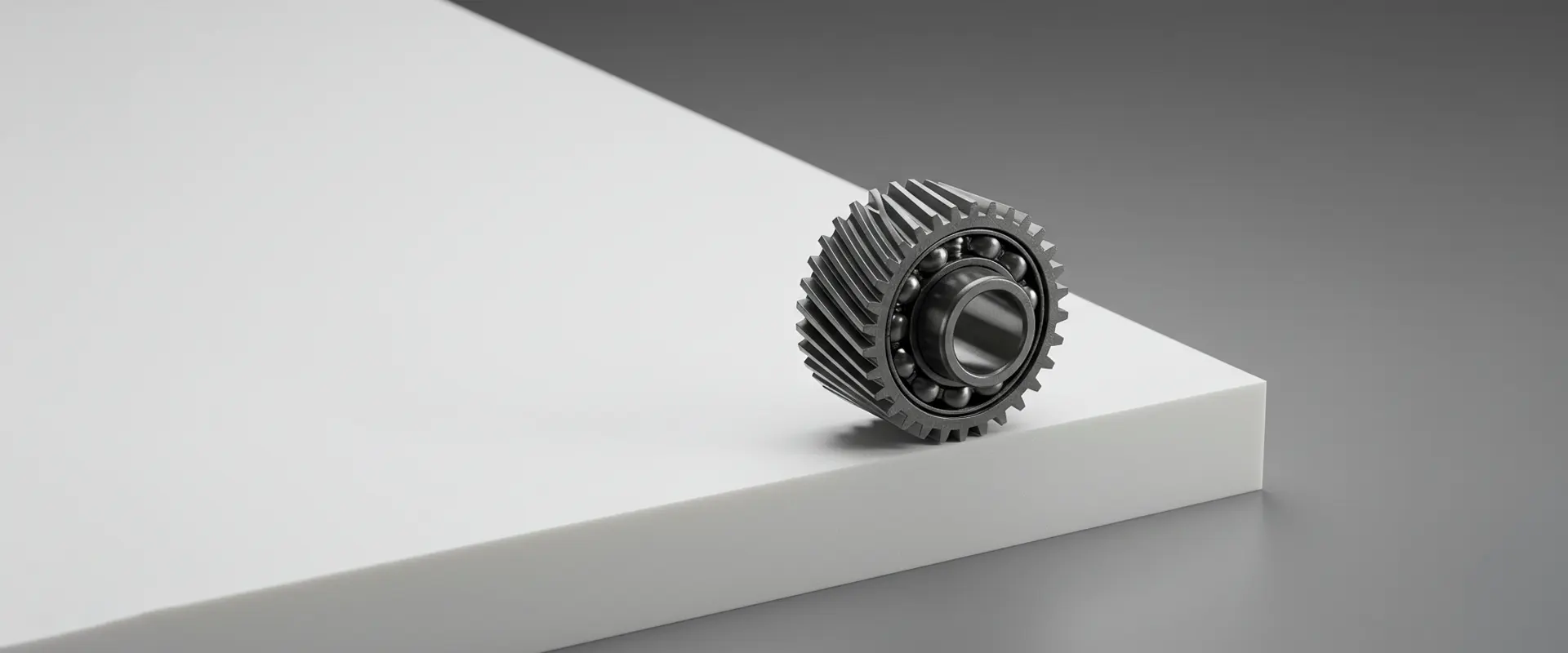

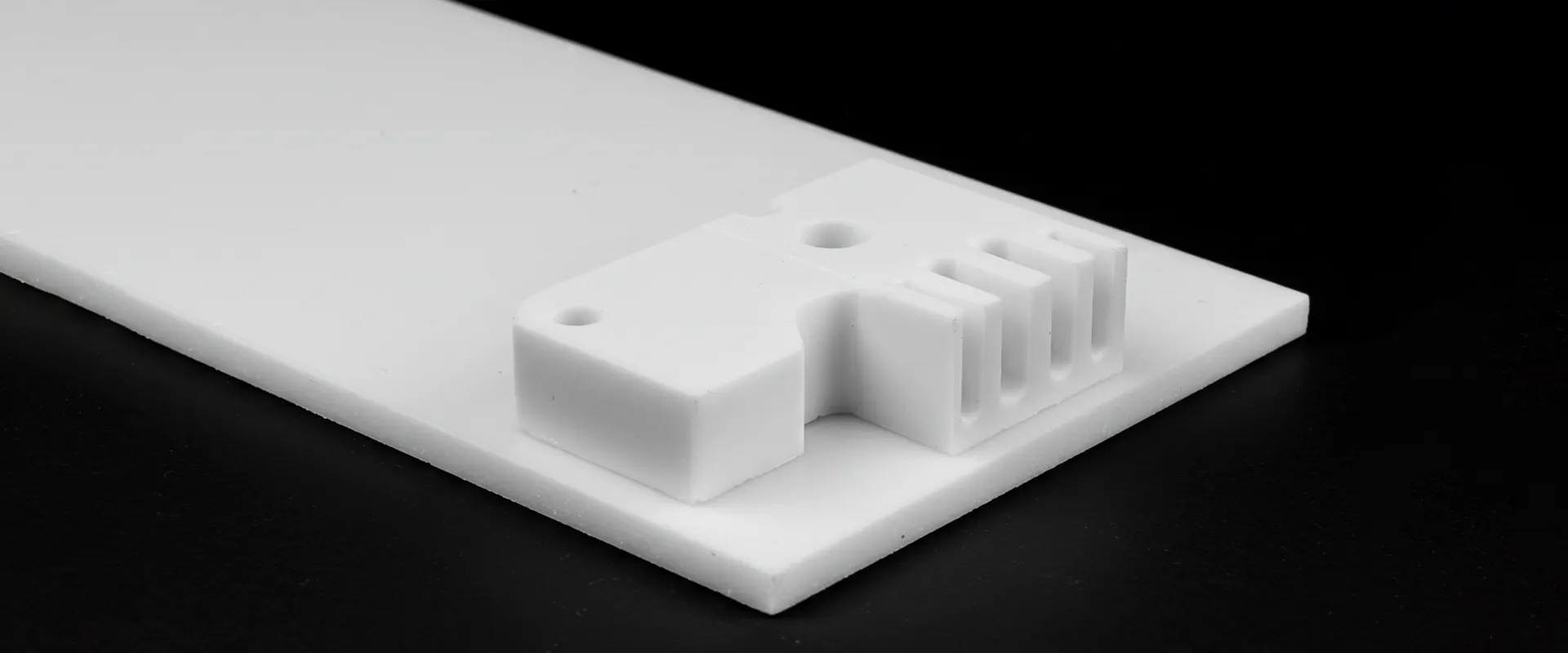

POM
POM, also known as acetal or polyoxymethylene, is a high-strength engineering plastic known for its excellent wear resistance and dimensional stability.
Color:
Black / White
Density
1.4 g/cm³
- Nylon (PA6/PA66)

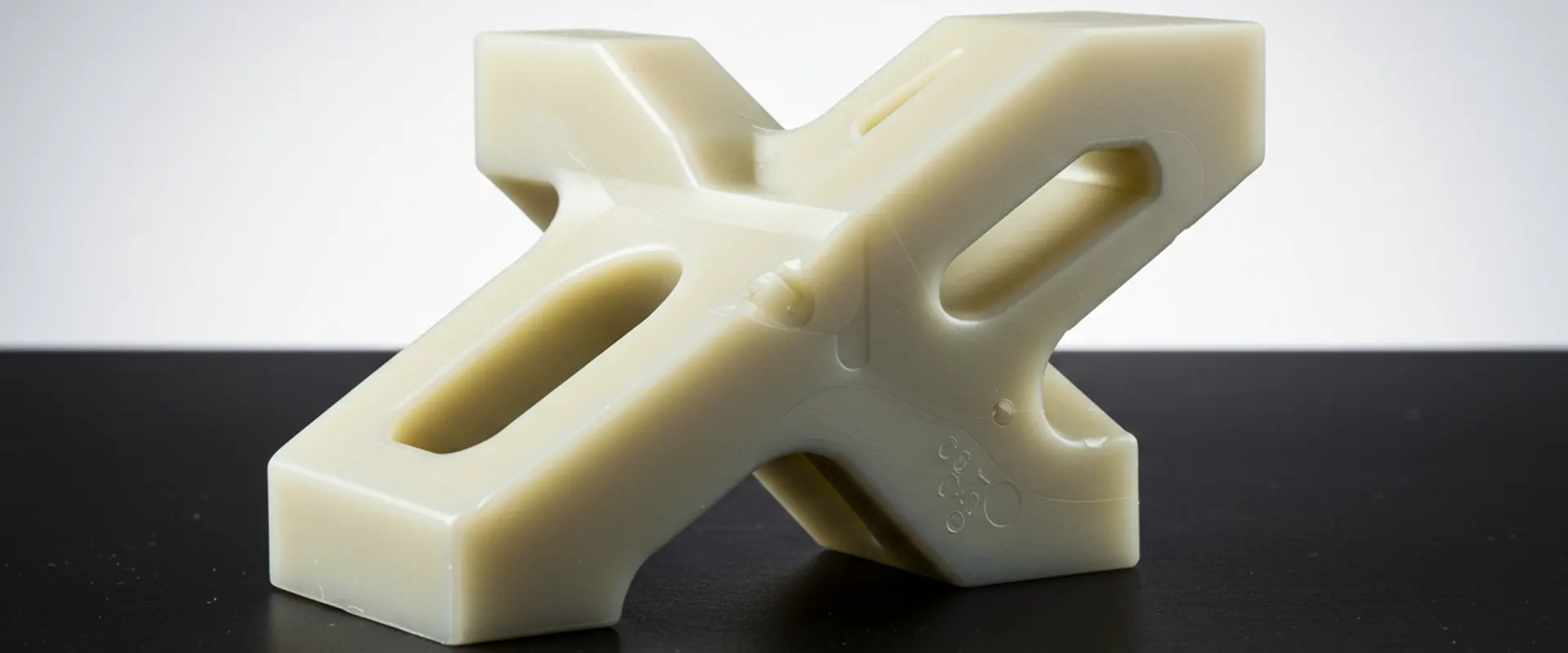

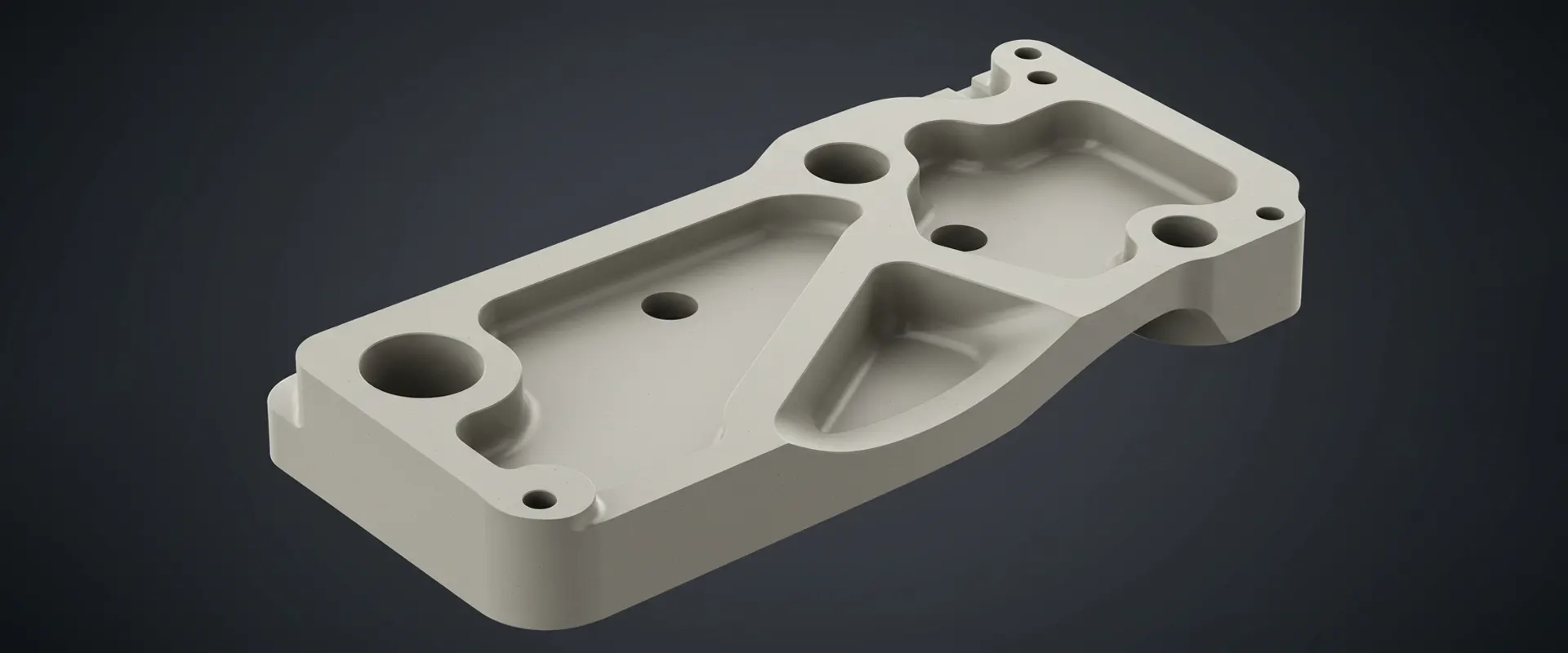

Nylon (PA6/PA66)
Nylon (PA6/PA66) is a strong, durable engineering plastic with good wear resistance and toughness. It is available in thick sizes and suitable for machining.
Color:
Black
Density:
1.3 g/cm³
Available Thickness:
110mm, custom ordered
Lead Time:
1–2 days
Price:
Approx. $5.30/kg
- PEEK
PEEK
PEEK is a high-performance thermoplastic with exceptional strength, chemical resistance, and heat resistance. It is ideal for demanding applications in aerospace, medical, and electronics.
Density:
1.4 g/cm³
Chemical Resistance:
Excellent
- PTFE
PTFE
PTFE, commonly known as Teflon, is a high-performance fluoropolymer with excellent chemical resistance, low friction, and high temperature stability. Widely used in chemical, electrical, and sealing applications.
Density:
2.3 g/cm³
Chemical Resistance:
Excellent
- PVC

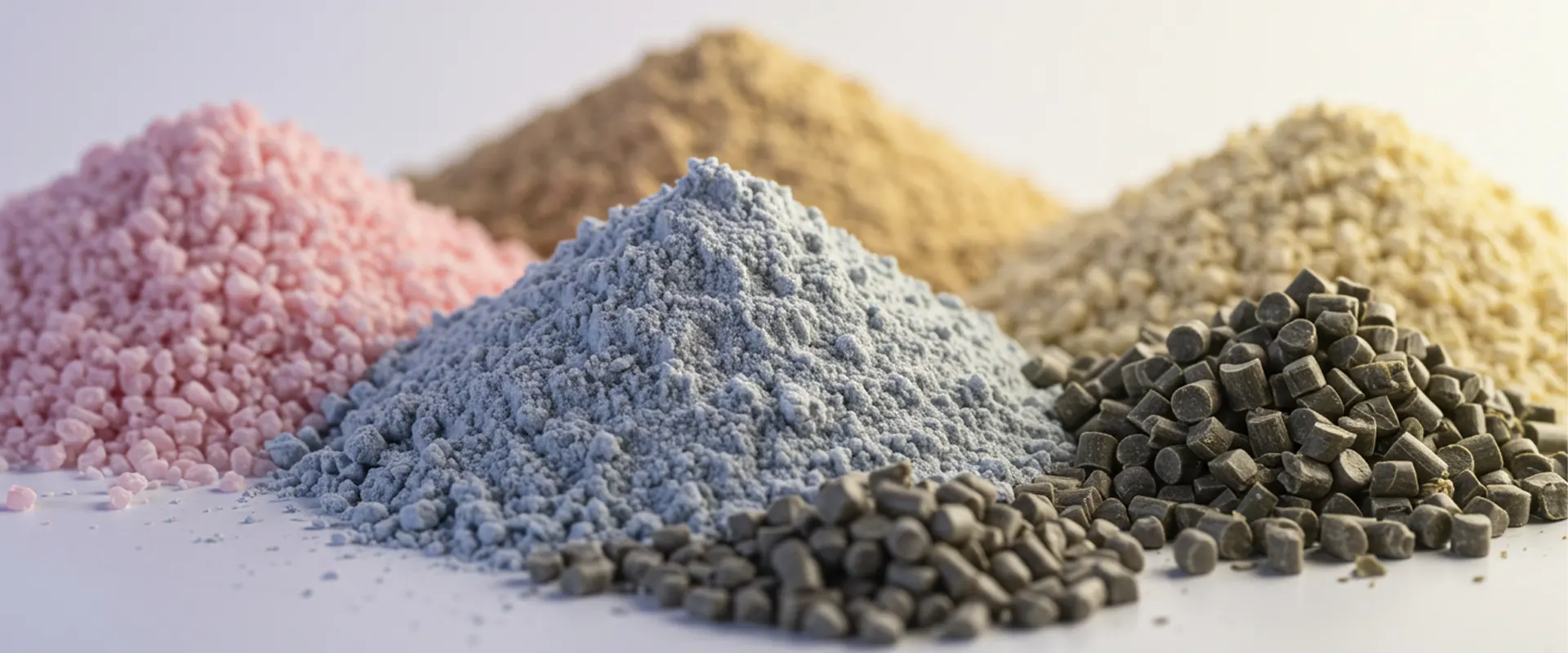

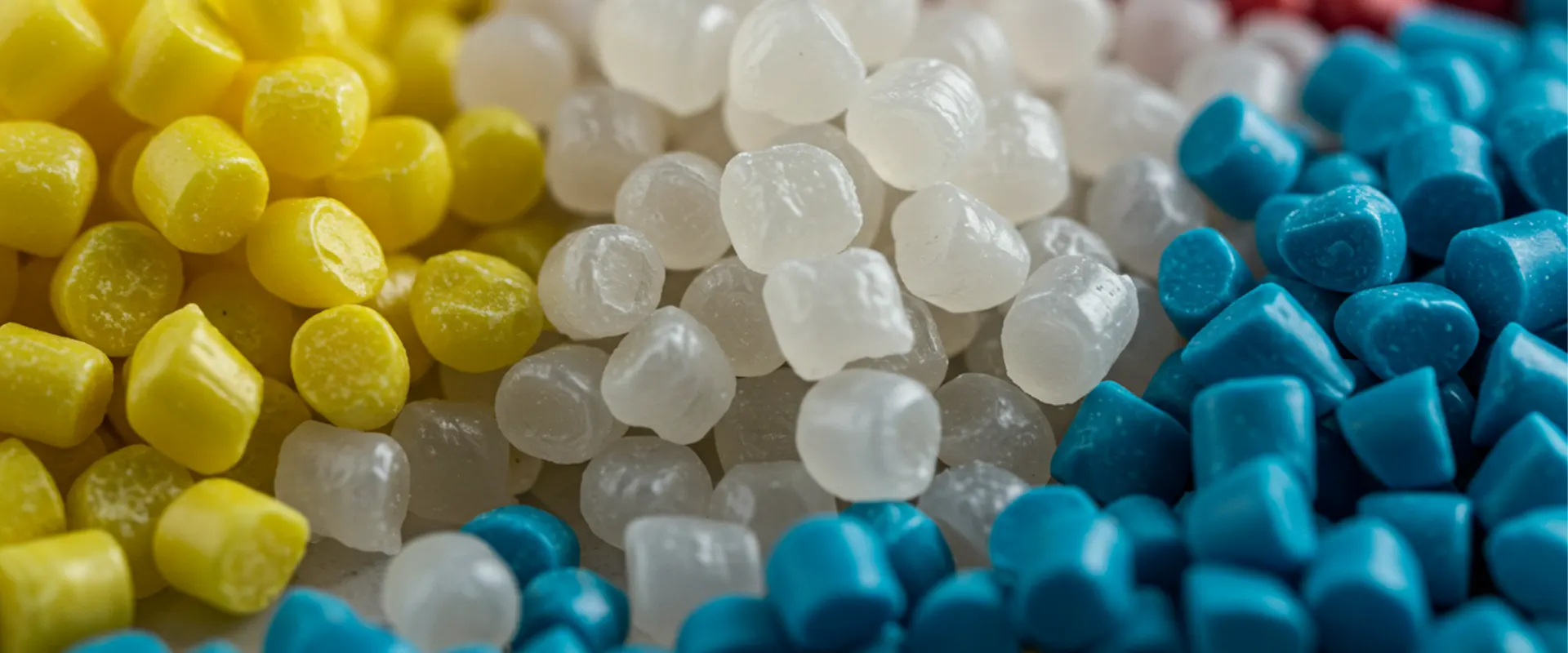

PVC
PVC is a widely used thermoplastic with good chemical resistance, flame retardancy, and electrical insulation. It is available in both rigid and flexible forms and is commonly used in pipes, panels, and insulation covers.
Density:
1.5 g/cm³
Chemical Resistance:
Excellent
- Aluminum 6061
Aluminum 6061
Aluminum 6061 is a versatile, lightweight alloy known for good mechanical properties, corrosion resistance, and excellent weldability. It is widely used in structural components, aerospace, automotive, and general engineering.
Density:
2.8 g/cm³
- Aluminum A5052
Aluminum A5052
Aluminum A5052 is a corrosion-resistant alloy with good weldability and moderate to high strength. It is widely used in marine, automotive, and general industrial applications.
Density:
2.8 g/cm³
Price:
approx. $ 2.98/kg
- A1100
A1100
A1100 is commercially pure aluminum (99%+ purity) with excellent corrosion resistance, workability, and thermal conductivity. It is soft, ductile, and non-heat-treatable. Widely used in chemical equipment, roofing, cooking utensils, and decorative parts.
- Aluminum Alloy 2A12
Aluminum Alloy 2A12
2A12 is a high-strength aluminum-copper alloy commonly used in aerospace and high-load structural applications. It offers excellent fatigue resistance and good machining performance but has relatively low corrosion resistance, so surface treatment is often required.
- Brass

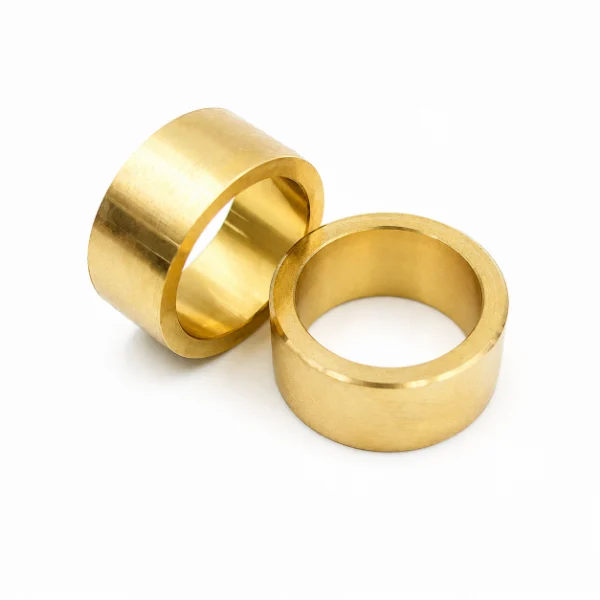

Brass
Brass is a copper-zinc alloy known for its good mechanical properties, excellent corrosion resistance, and attractive golden color. It is widely used in decorative fittings, electrical components, plumbing, and precision machined parts.
Density:
8.9 g/cm³
- Copper(CU)
Copper(CU)
Copper (CU) is a highly conductive metal with excellent corrosion resistance. Its common alloys include Brass (copper-zinc), Bronze (copper-tin), and Pure Copper (red copper). These materials are widely used in electrical, mechanical, and decorative applications.
Color:
Brass/Bronze/Copper
Density:
8.9 g/cm³
- Magnesium Alloy
Magnesium Alloy
Magnesium alloy is a lightweight metal alloy known for its high strength-to-weight ratio, excellent machinability, and good vibration damping. It is widely used in aerospace, automotive, and electronics industries where weight reduction is critical.
Density:
1.9 g/cm³
- Aluminum 3003
Aluminum 3003
Aluminum 3003 is a commercially pure aluminum alloy with manganese as the primary alloying element. It offers good corrosion resistance, excellent workability, and moderate strength. It is commonly used in roofing, siding, and cookware applications.
- Aluminum A5056
Aluminum A5056
Aluminum A5056 is a high magnesium-content alloy known for excellent corrosion resistance, especially in marine environments. It offers good weldability and moderate strength, widely used in shipbuilding, marine hardware, and chemical equipment.
Density:
2.8 g/cm³
- Copper Alloy C3604
Copper Alloy C3604
C3604, also known as free-machining brass, is a copper-zinc alloy with excellent machinability, good corrosion resistance, and attractive golden color. It is widely used in precision machining parts, electrical connectors, and plumbing fittings.
Density:
8.9 g/cm³
- Aluminum Alloy 5000
Aluminum Alloy 5000
The 5000 series aluminum alloys are magnesium-based alloys known for excellent corrosion resistance, good weldability, and moderate to high strength. They are widely used in marine, automotive, and structural applications.
- AL1060
AL1060
AL1060 is a commercially pure aluminum alloy with an aluminum content of about 99.6%. It has excellent electrical and thermal conductivity, outstanding corrosion resistance, and very good formability. Commonly used in electrical conductors, chemical equipment, and sheet metal parts.
- C2801P-1/2H
C2801P-1/2H
C2801P is a brass alloy with around 60% copper and 40% zinc, known as "Muntz metal" or alpha-beta brass. The “1/2H” indicates half-hard temper, giving it moderate strength with better formability compared to full hard. It offers good corrosion resistance, good cold workability, and is commonly used for architectural trim, hardware, and decorative parts.
- C1020P
C1020P
C1020P is a high-purity oxygen-free copper (OFC) with excellent electrical and thermal conductivity, outstanding ductility, and good corrosion resistance. It is widely used in electrical applications, electronic components, and vacuum devices where high conductivity and cleanliness are critical.
- A2014
A2014
A2014 is a high-strength aluminum-copper alloy known for excellent machinability, good mechanical properties, and fair corrosion resistance. It is often used in aerospace parts, heavy-duty forgings, and precision components requiring high strength and good wear resistance.
Density:
2.8 g/cm³
- Aluminum Alloy 7000
Aluminum Alloy 7000
The 7000 series aluminum alloys are zinc-based, high-strength alloys with excellent mechanical properties and fatigue resistance, widely used in aerospace, military, and high-performance structural applications. Typical grades include 7075, 7050, and 7005. Corrosion resistance is moderate, so they often require surface treatments.
Density:
2.8 g/cm³
- Titanium Alloy
Titanium Alloy
Titanium alloys are known for their high strength-to-weight ratio, excellent corrosion resistance, and good biocompatibility. They are widely used in aerospace, medical implants, chemical processing, and high-performance engineering applications. Despite being lightweight (density about 4.6 g/cm³), titanium alloys offer superior mechanical properties and resistance to extreme environments.
Density:
4.6
- 7075
7075
7075 is a high-strength aluminum-zinc-magnesium-copper alloy, widely used in aerospace, military, and high-performance engineering parts. It features excellent mechanical strength and fatigue resistance, with moderate corrosion resistance—so it’s often treated with anodizing or coatings.
- A2011
A2011
A2011 is a free-machining aluminum-copper alloy known for excellent machinability and good mechanical strength. It is often used for high-speed automatic lathes, precision turned parts, and screw machine products. It offers fair corrosion resistance and is typically used where complex shapes and fast production are required.
Density:
2.8 g/cm³
- A2024
A2024
A2024 is a high-strength aluminum-copper alloy, widely recognized for its excellent fatigue resistance and good machinability. It is commonly used in aerospace structures, rivets, and precision components requiring high strength-to-weight ratio. While it has good mechanical properties, its corrosion resistance is moderate and often needs protective coatings.
Density:
2.8 g/cm³
- A7050
A7050
A7050 is a high-strength aluminum-zinc-magnesium-copper alloy designed mainly for aerospace structural applications. It offers very high strength, excellent fracture toughness, and good stress corrosion cracking resistance—making it suitable for thick sections and critical parts. Its overall corrosion resistance is better than some other 7000 series alloys like 7075.
Density:
2.8 g/cm³
If you do not see the material stock you are looking for, please choose "Custom" under the material drop-down on your quote page and submit for an expert engineering review once you have specified features, tolerances, inspection needs, and quantities required. contact us
Need The Right Waterjet Solution?
Different waterjet systems may require specific component designs. We provide CNC machining and customized part solutions to meet unique requirements for size, structure, and performance.
Mixing Tube Components Manufacturing & Inspection
Manufacturing and inspection requirements vary between mixing tubes, nozzle clamps, and protective components. Critical considerations may include dimensional control, machining quality, surface condition, and component cleanliness. Inspection requirements should be matched to the actual material, component geometry, and intended cutting head configuration.
| Surface Treatment | Process Description | Applicable Components | Purpose | |
 |
Precision CNC Machining | KAD utilizes advanced CNC machining equipment and strict process control to manufacture high-precision waterjet components with consistent dimensions, reliable assembly performance, and stable quality. | Nozzle clamp, protector body | Ensures assembly compatibility |
 |
Precision Grinding | Removes machining marks and improves dimensional accuracy of precision fitting surfaces | Contact surfaces | Ensures accurate fitting |
 |
Surface Polishing | Improves surface smoothness to reduce friction and improve sealing contact | Metal contact areas | Reduces wear and friction |
 |
Ultrasonic Cleaning | The cleaning process removes machining residues, oil, dust, and contaminants from waterjet parts to ensure surface cleanliness and reliable assembly. | Finished assemblies | Prevents cutting contamination |
If you do not see the surface finish you are looking for, please choose “Custom” on the quote page. After specifying features, tolerances, inspection requirements, and quantities, submit for an expert engineering review — or simply contact us for support.

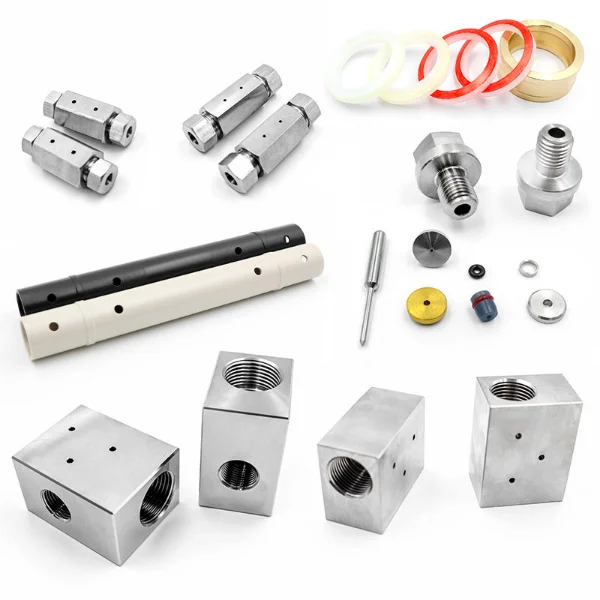

Featured Mixing Tubes & Cutting Head Accessories
Explore selected waterjet mixing tubes and related cutting head accessories from KAD. Browse replacement components, including nozzle clamps, protectors, and compatible mounting parts, or contact our team with your part numbers and dimensions to identify suitable products.
Frequently Asked Questions
Find answers about KAD waterjet parts, including selection, customization, compatibility, and delivery. Need more details? Contact our experts at foshankeaide2025@gmail.com
-
What is the difference between a waterjet mixing tube and a focusing tube?
-
How do I choose the correct waterjet mixing tube size?
-
What materials are used for waterjet mixing tubes?
-
How can I tell when a mixing tube needs replacement?
-
Can I replace the mixing tube without replacing the complete cutting head?
-
What details should I provide when ordering waterjet mixing tubes in bulk?
What Our Customers Say
KAD provides reliable waterjet parts with accurate dimensions and stable performance. The components fit our equipment well and help reduce maintenance time.
Production Manager
From product selection to delivery, KAD provided clear communication and professional support throughout the process.
Engineering Director
KAD’s precision-machined parts provide a dependable solution for our waterjet system maintenance and replacement needs.
Operations Head
Customization Process
KAD provides a streamlined customization process from product selection and technical confirmation to precision manufacturing and final delivery. With professional engineering support and strict quality control, we ensure each waterjet part meets your equipment requirements and performance expectations.
Product Selection
Choose from KAD’s existing waterjet parts range or provide your requirements for customized components based on equipment models, drawings, or technical specifications.
Requirement Confirmation
Confirm product specifications, materials, dimensions, and technical details to ensure the solution meets your application requirements.
Precision Production
After order confirmation and deposit payment, products are manufactured through precision machining processes with strict quality control.
Inspection & Shipment
Products undergo final inspection and packaging before being safely shipped according to the agreed delivery plan.
Start Your Waterjet Project Today
We provide full-range waterjet components with stable quality, strong manufacturing capability, and flexible customization to support your production needs.
