Waterjet Orifice & Jewel
KAD is one of the suppliers of the waterjet orifices for industrial water cutting systems line ruby, sapphire and diamond. They are precision components used during waterjet processing for pure waterjet and abrasive water jet applications to create a concentrated water stream in a high pressure application. We provide replacement orifice sourcing and bulk purchasing requests for equipment maintenance companies, industrial buyers and distributors. Customers can input reference part numbers, orifice diameters, assembly specification and equipment models to verify the compatibility and to get the quotations.
-
Ruby, Sapphire & Diamond Options
-
Precision Orifice Inspection
-
Factory-Direct Bulk Supply

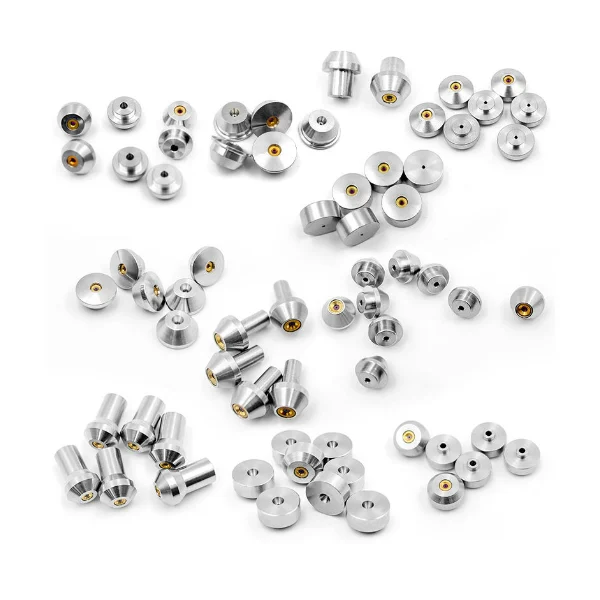

Ruby, Sapphire & Diamond Waterjet Orifices
Explore KAD's range of waterjet orifices for replacement and maintenance applications. Ruby, sapphire, and diamond options are available for different cutting requirements and equipment configurations. Orifice selection should consider the cutting process, aperture diameter, mounting design, operating conditions, and original component specifications.

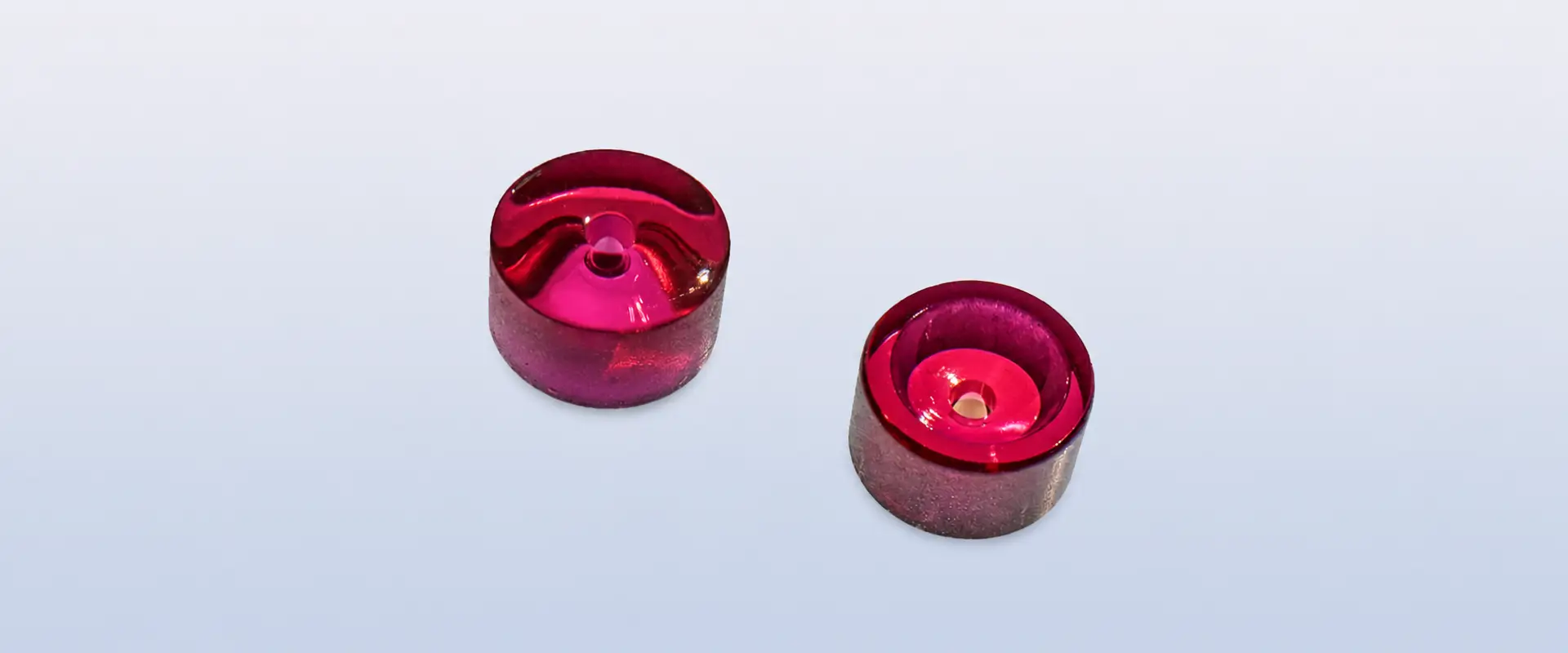

Ruby Waterjet Orifice
Ruby waterjet orifices are commonly used in abrasive waterjet cutting systems. They provide a practical option for routine replacement applications. Available dimensions and mounting configurations should be selected according to the cutting head design and original part specifications.

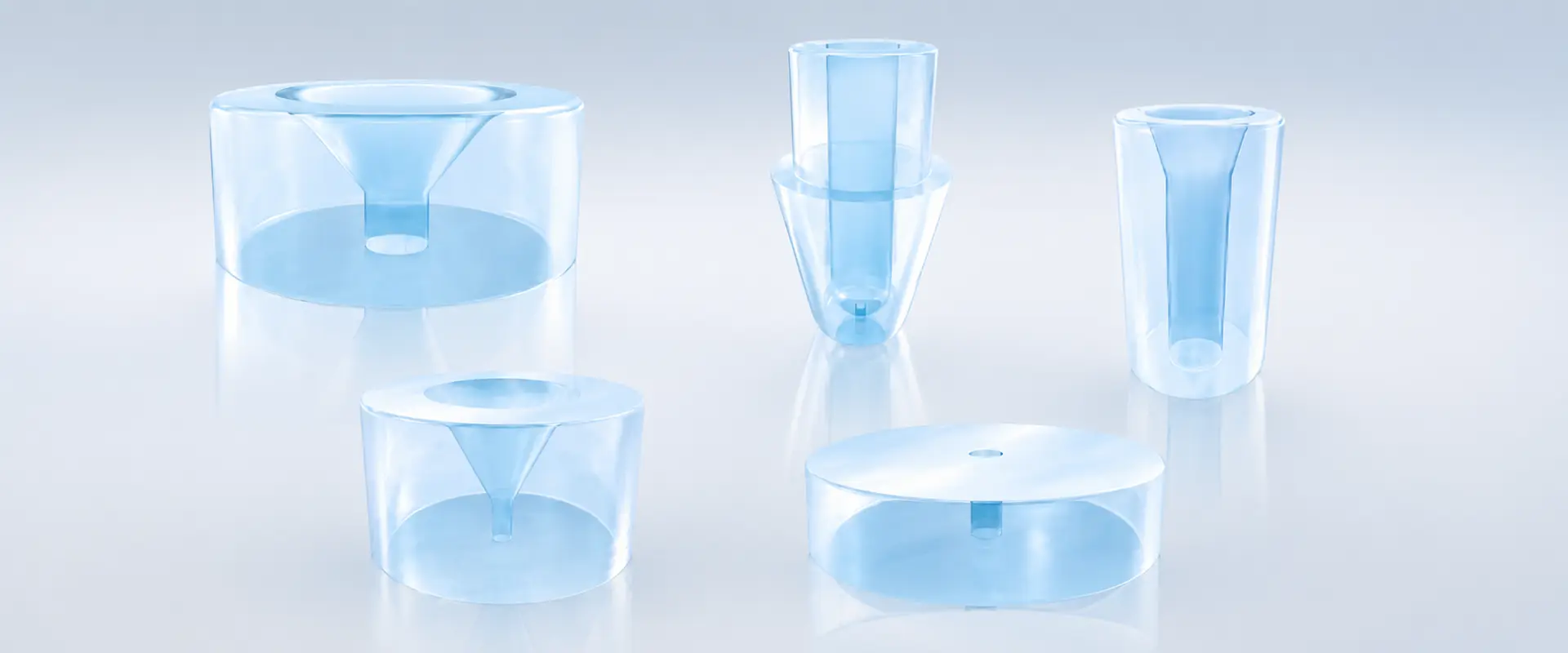

Sapphire Waterjet Orifice
Sapphire waterjet orifices are used in a range of waterjet systems, including pure-water cutting applications. Their selection depends on the required aperture diameter, assembly design, and operating conditions. Buyers should confirm compatibility with the intended cutting head before ordering.

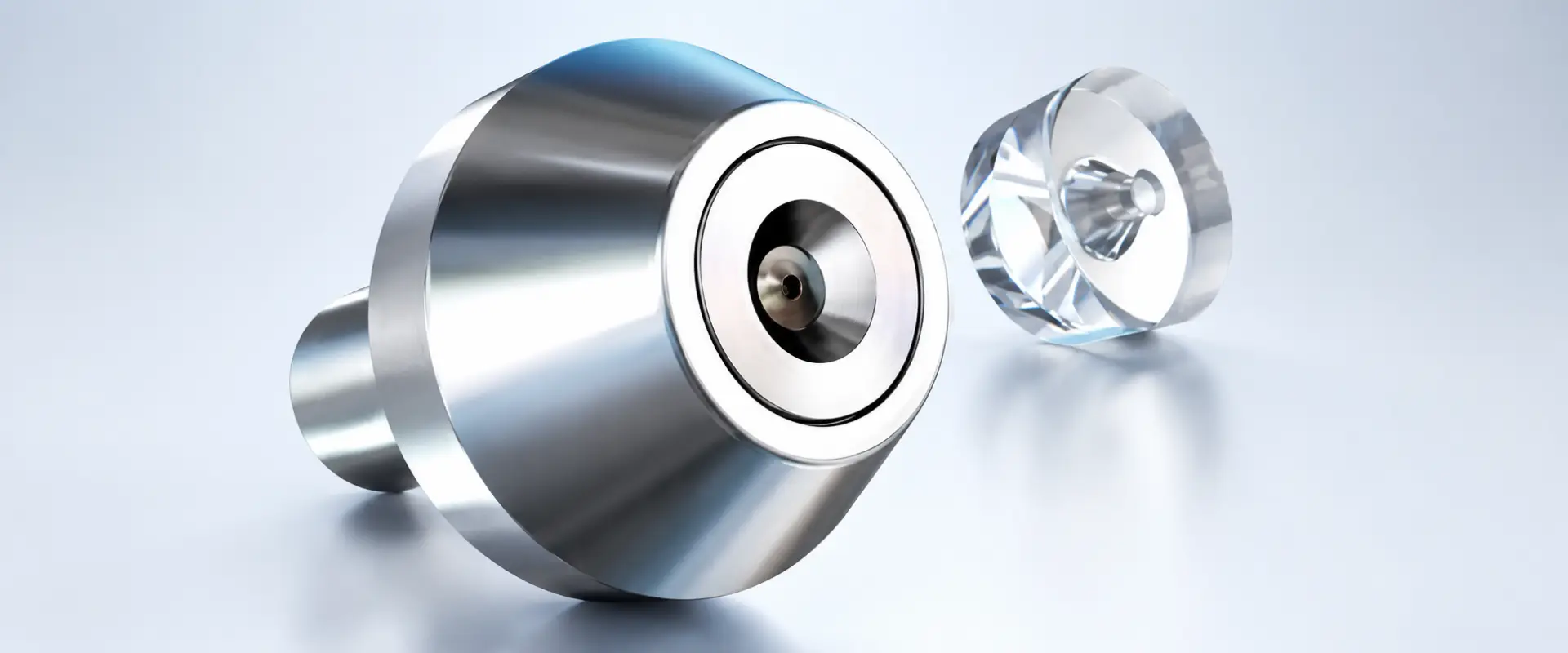

Diamond Waterjet Orifice
Diamond waterjet orifices are designed for applications where wear resistance and extended service intervals are important considerations. Proper component selection requires confirmation of the orifice diameter, mounting configuration, operating pressure, and intended cutting application.
Why Choose KAD for Waterjet Orifices?
Precision Micro Manufacturing
KAD focuses on micron-level processing and inspection to maintain stable jet performance.
Reliable Material Selection
Different jewel materials are selected according to cutting pressure, working conditions, and service requirements.
Stable Cutting Performance
Accurate orifice geometry helps maintain consistent cutting quality.
Strict Quality Inspection
Each component is inspected for dimensions, surface quality, and cleanliness.
Waterjet Orifice Precision & Quality Inspection
| Component / Inspection Item | Inspection Method | Typical Tolerance / Accuracy | Purpose |
| Orifice Diameter | Optical measurement / microscope inspection | Micron-level control | Controls water flow and jet size |
| Hole Roundness | High-magnification inspection | Controlled geometry consistency | Ensures stable jet formation |
| Hole Position Accuracy | Precision optical inspection | ±0.005mm | Maintains correct jet alignment |
| Jewel Thickness | Micrometer measurement | ±0.01mm | Ensures proper installation |
| Surface Flatness | Optical inspection | Controlled according to application requirement | Improves sealing and contact performance |
| Edge Quality | Microscope inspection | Defect-controlled edge condition | Maintains focused water stream |
| Surface Cleanliness | Ultrasonic cleaning inspection | Particle-controlled | Prevents jet instability |
| Final Performance Check | Functional testing | According to customer requirements | Ensures reliable cutting performance |
The above tolerance values represent typical manufacturing capability under controlled production conditions. Actual tolerance requirements may vary depending on component design, material characteristics, structural complexity, and customer specifications. contact us
Waterjet Orifice Materials
Waterjet orifices are available in different jewel materials to suit specific cutting applications and maintenance requirements. Ruby and sapphire are commonly used for conventional waterjet applications, while diamond options are considered where longer operating life is a priority.
Material selection should take into account the cutting process, orifice geometry, component quality, and operating conditions. KAD assists buyers in reviewing available options based on their equipment requirements and reference specifications.
