Waterjet Cutting Head
KAD produces and sells waterjet cutting head parts for industrial waterjet cutting systems, such as abrasive cutting head assemblies, nozzle bodies, connecting rods, and other parts and assemblies for waterjet cutting systems that need replacement. We manufacture chemicals maintenance for cutting heads, component replacement, and equipment servicing. In collaboration with our customers, the owners of waterjet equipment, maintenance shops and industrial distributors, we determine the right parts for waterjet machines using models, reference parts, and technical drawings. Contact KAD for information on product parts and compatibility and factory quotes
Waterjet Cutting Head Parts & Components
Explore KAD's selection of waterjet cutting head components for abrasive cutting systems. Our product range includes abrasive cutting head assemblies, nozzle bodies, and connecting rods used in cutting head installation, replacement, and maintenance. Different waterjet systems require specific component designs, dimensions, and mounting configurations. Buyers can provide equipment details or reference part numbers to confirm suitable replacement options.

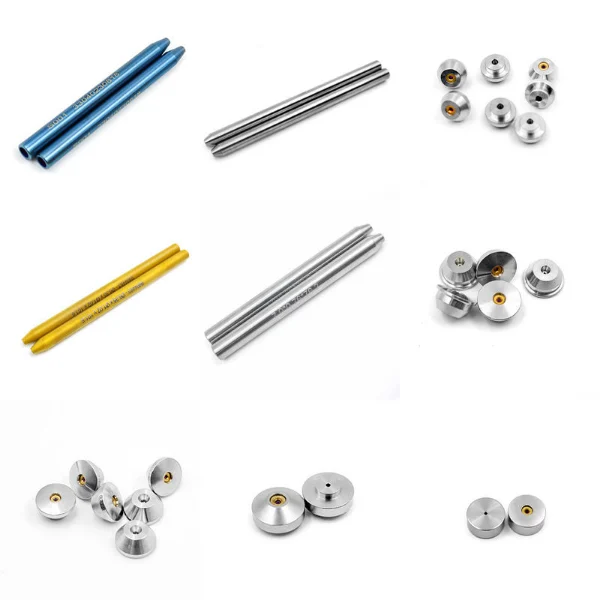

Abrasive Cutting Head
Abrasive cutting heads combine high-pressure water with abrasive particles to form a focused cutting stream. The assembly typically includes components responsible for waterjet alignment, abrasive mixing, and nozzle positioning. KAD supplies cutting head assemblies and related replacement parts for compatible industrial waterjet systems.

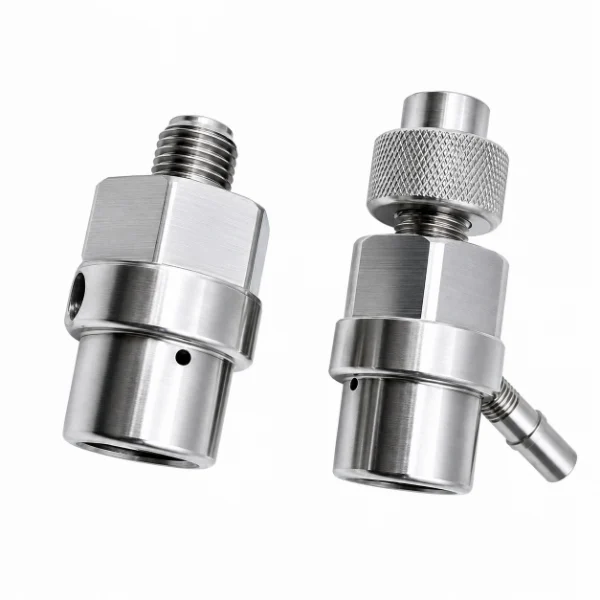

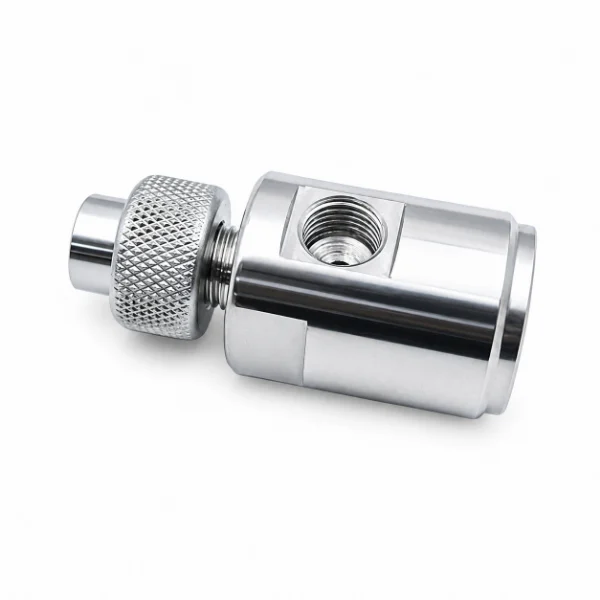

Nozzle Body
The waterjet nozzle body supports the positioning and installation of critical cutting head components. Its dimensions, internal geometry, and mounting interfaces must match the specified cutting head configuration. KAD provides replacement nozzle bodies for selected waterjet systems, with compatibility confirmed according to part numbers and technical requirements.
Connecting Rod
Connecting rods are used in selected multi-axis waterjet cutting head mechanisms to support mechanical positioning and movement. Depending on the equipment design, critical considerations include connection dimensions, mounting geometry, material strength, and dimensional accuracy. KAD can review replacement requirements based on the original part or engineering drawing.
Why Choose KAD for Waterjet Cutting Head Parts?
Precision Component Machining
Dimensional accuracy and mounting compatibility are important considerations for nozzle bodies, connecting components, and cutting head assemblies.
Cutting Head Alignment
Proper positioning of the orifice, mixing chamber, and focusing tube helps maintain a consistent cutting stream in compatible abrasive cutting head systems.
Replacement Part Identification
KAD helps industrial buyers review machine models, original part numbers, samples, and drawings to identify suitable cutting head components.
Manufacturing & Supply Support
We support distributors, maintenance companies, and industrial customers with replacement part sourcing, technical requirement confirmation, and bulk purchasing inquiries.
Cutting Head Component Precision & Inspection
| Component / Inspection Item | Inspection Method | Typical Tolerance / Accuracy | Purpose |
| Orifice Mounting Position | CMM inspection | ±0.01mm | Ensures accurate jet alignment |
| Mixing Chamber Position | Dimensional measurement | ±0.01mm | Maintains stable abrasive mixing |
| Nozzle Concentricity | Optical inspection | ±0.01mm | Improves cutting consistency |
| Internal Flow Channel Dimension | Precision measurement | ±0.01mm ~ ±0.02mm | Ensures smooth water and abrasive flow |
| Mounting Interface Dimension | CMM measurement | ±0.02mm | Ensures equipment compatibility |
| Thread Accuracy | Thread gauge inspection | ±0.01mm | Guarantees secure component assembly |
| Surface Finish of Flow Area | Roughness testing | Ra 0.2–0.8μm | Reduces turbulence and improves jet stability |
| Assembly Verification | Functional inspection | According to customer requirements | Ensures complete system performance |
The above tolerance values represent typical manufacturing capability under controlled production conditions. Actual tolerance requirements may vary depending on component design, material characteristics, structural complexity, and customer specifications. contact us
Materials for Waterjet Cutting Head Components
Material requirements vary across waterjet cutting head components because individual parts perform different structural, positioning, and wear-related functions. Nozzle bodies, connecting components, and abrasive-contact parts require material properties suited to their operating conditions and component designs. KAD reviews material specifications based on reference parts, technical drawings, and application requirements to support replacement and custom manufacturing inquiries.
- Aluminum 6061
- Aluminum A5052
- A1100
- Aluminum Alloy 2A12
- Brass
- Copper(CU)
- Aluminum 3003
- Aluminum A5056
- Copper Alloy C3604
- Aluminum Alloy 5000
- Aluminum Alloy AL2024 / A2024-T6
- Imported Aluminum Alloy 5083
- Imported Aluminum Alloy 6082
- Imported Aluminum Alloy 6061-T561
- C1020P
- Aluminum Alloy 7000
- Aluminum 6061
Aluminum 6061
Aluminum 6061 is a versatile, lightweight alloy known for good mechanical properties, corrosion resistance, and excellent weldability. It is widely used in structural components, aerospace, automotive, and general engineering.
Density:
2.8 g/cm³
- Aluminum A5052
Aluminum A5052
Aluminum A5052 is a corrosion-resistant alloy with good weldability and moderate to high strength. It is widely used in marine, automotive, and general industrial applications.
Density:
2.8 g/cm³
Price:
approx. $ 2.98/kg
- A1100
A1100
A1100 is commercially pure aluminum (99%+ purity) with excellent corrosion resistance, workability, and thermal conductivity. It is soft, ductile, and non-heat-treatable. Widely used in chemical equipment, roofing, cooking utensils, and decorative parts.
- Aluminum Alloy 2A12
Aluminum Alloy 2A12
2A12 is a high-strength aluminum-copper alloy commonly used in aerospace and high-load structural applications. It offers excellent fatigue resistance and good machining performance but has relatively low corrosion resistance, so surface treatment is often required.
- Brass
Brass
Brass is a copper-zinc alloy known for its good mechanical properties, excellent corrosion resistance, and attractive golden color. It is widely used in decorative fittings, electrical components, plumbing, and precision machined parts.
Density:
8.9 g/cm³
- Copper(CU)
Copper(CU)
Copper (CU) is a highly conductive metal with excellent corrosion resistance. Its common alloys include Brass (copper-zinc), Bronze (copper-tin), and Pure Copper (red copper). These materials are widely used in electrical, mechanical, and decorative applications.
Color:
Brass/Bronze/Copper
Density:
8.9 g/cm³
- Aluminum 3003
Aluminum 3003
Aluminum 3003 is a commercially pure aluminum alloy with manganese as the primary alloying element. It offers good corrosion resistance, excellent workability, and moderate strength. It is commonly used in roofing, siding, and cookware applications.
- Aluminum A5056
Aluminum A5056
Aluminum A5056 is a high magnesium-content alloy known for excellent corrosion resistance, especially in marine environments. It offers good weldability and moderate strength, widely used in shipbuilding, marine hardware, and chemical equipment.
Density:
2.8 g/cm³
- Copper Alloy C3604
Copper Alloy C3604
C3604, also known as free-machining brass, is a copper-zinc alloy with excellent machinability, good corrosion resistance, and attractive golden color. It is widely used in precision machining parts, electrical connectors, and plumbing fittings.
Density:
8.9 g/cm³
- Aluminum Alloy 5000
Aluminum Alloy 5000
The 5000 series aluminum alloys are magnesium-based alloys known for excellent corrosion resistance, good weldability, and moderate to high strength. They are widely used in marine, automotive, and structural applications.
- Aluminum Alloy AL2024 / A2024-T6
Aluminum Alloy AL2024 / A2024-T6
AL2024 is a high-strength aluminum-copper alloy widely used in aerospace and structural applications. The T6 temper means it is solution heat-treated and artificially aged to achieve high mechanical strength. It offers excellent fatigue resistance but moderate corrosion resistance, so surface protection is usually necessary.
- Imported Aluminum Alloy 5083
Imported Aluminum Alloy 5083
5083 is a non-heat-treatable aluminum-magnesium alloy known for exceptional corrosion resistance, especially in marine environments. It has good weldability and moderate-to-high strength, making it ideal for shipbuilding, transportation, and structural applications. Imported 5083 typically meets international quality standards ensuring high reliability.
- Imported Aluminum Alloy 6082
Imported Aluminum Alloy 6082
6082 is a medium-strength heat-treatable aluminum-magnesium-silicon alloy, widely used in structural and engineering applications. It offers good corrosion resistance, excellent weldability, and good machinability. Imported 6082 generally meets strict international standards for quality and performance.
- Imported Aluminum Alloy 6061-T561
Imported Aluminum Alloy 6061-T561
6061-T561 is a heat-treated aluminum-magnesium-silicon alloy known for good mechanical strength, excellent corrosion resistance, and very good machinability. The T561 temper indicates it has been solution heat-treated, stress relieved by stretching, and artificially aged. It is widely used in structural parts, automotive, and precision components. Imported material meets strict international standards for quality and consistency.
- C1020P
C1020P
C1020P is a high-purity oxygen-free copper (OFC) with excellent electrical and thermal conductivity, outstanding ductility, and good corrosion resistance. It is widely used in electrical applications, electronic components, and vacuum devices where high conductivity and cleanliness are critical.
If you do not see the material stock you are looking for, please choose "Custom" under the material drop-down on your quote page and submit for an expert engineering review once you have specified features, tolerances, inspection needs, and quantities required. contact us
Need The Right Waterjet Solution?
Different waterjet systems may require specific component designs. We provide CNC machining and customized part solutions to meet unique requirements for size, structure, and performance.
Cutting Head Component Finishing & Inspection
Precision finishing helps maintain dimensional consistency and proper assembly of waterjet cutting head components. Depending on the component design, manufacturing requirements may include grinding, machining finish control, deburring, cleaning, and inspection of mounting surfaces. The appropriate processes are determined by material selection, dimensional specifications, and the intended operating conditions.
| Surface Treatment | Process Description | Applicable Components | Purpose | |
 |
Precision Grinding | Removes machining marks and improves dimensional accuracy of precision fitting surfaces | Valve cavities and contact surfaces | Ensures accurate fitting |
 |
Surface Polishing | Improves surface smoothness to reduce friction and improve sealing contact | Hydraulic flow areas | Improves fluid movement |
 |
Anti-Corrosion Treatment | Anti-corrosion treatment is applied to waterjet parts to improve surface protection and resistance against oxidation, moisture, and harsh working environments. | External metal surfaces | Prevents corrosion |
 |
Cleaning Process | The cleaning process removes machining residues, oil, dust, and contaminants from waterjet parts to ensure surface cleanliness and reliable assembly. | Hydraulic channels | Ensures clean operation |
If you do not see the surface finish you are looking for, please choose “Custom” on the quote page. After specifying features, tolerances, inspection requirements, and quantities, submit for an expert engineering review — or simply contact us for support.
Featured Waterjet Cutting Head Components
Browse selected waterjet cutting head replacement components from KAD, including nozzle bodies, connecting rods, abrasive inlet fittings, and other precision parts. These products support maintenance, repair, and replacement requirements for compatible waterjet equipment. Explore individual products for reference specifications or contact us to confirm the correct component for your cutting head system.
Frequently Asked Questions
Find answers about KAD waterjet parts, including selection, customization, compatibility, and delivery. Need more details? Contact our experts at foshankeaide2025@gmail.com
-
What parts are included in a waterjet cutting head?
-
What is the difference between a waterjet cutting head and a nozzle body?
-
How do I choose compatible waterjet cutting head parts?
-
Can I replace individual cutting head parts instead of the complete assembly?
-
Can KAD manufacture customized waterjet cutting head components?
What Our Customers Say
KAD provides reliable waterjet parts with accurate dimensions and stable performance. The components fit our equipment well and help reduce maintenance time.
Production Manager
From product selection to delivery, KAD provided clear communication and professional support throughout the process.
Engineering Director
KAD’s precision-machined parts provide a dependable solution for our waterjet system maintenance and replacement needs.
Operations Head
Customization Process
KAD provides a streamlined customization process from product selection and technical confirmation to precision manufacturing and final delivery. With professional engineering support and strict quality control, we ensure each waterjet part meets your equipment requirements and performance expectations.
Product Selection
Choose from KAD’s existing waterjet parts range or provide your requirements for customized components based on equipment models, drawings, or technical specifications.
Requirement Confirmation
Confirm product specifications, materials, dimensions, and technical details to ensure the solution meets your application requirements.
Precision Production
After order confirmation and deposit payment, products are manufactured through precision machining processes with strict quality control.
Inspection & Shipment
Products undergo final inspection and packaging before being safely shipped according to the agreed delivery plan.
Start Your Waterjet Project Today
We provide full-range waterjet components with stable quality, strong manufacturing capability, and flexible customization to support your production needs.
